4.1.1 Fractal Square#

Duration:: 20-25 minutes
Level:: Beginner-Intermediate

Overview#

One function. Four recursive calls per level. The result: an 800x800 canvas filled with nested green squares that brighten where they overlap. In this exercise, you will build that function from scratch using recursive square subdivision, where each square spawns four smaller copies of itself in its corners.

The fractal square is a direct introduction to writing recursive functions. The same technique, a function calling itself with shrinking parameters, underpins the Mandelbrot set, L-systems, and procedural terrain generation. By the end, you will have a working recursive algorithm and a visual proof that 15 lines of logic can fill a canvas with structure at every scale.

Learning Objectives#

By the end of this exercise, you will be able to:

Understand recursive function structure with base cases and recursive cases
Apply divide-and-conquer strategy to generate fractal patterns
Visualize how recursion depth affects pattern complexity
Create variations of fractal patterns by modifying recursion parameters

Quick Start: See It In Action#

Run this code and a pattern of nested green squares appears. Zoom into any corner and the same structure recurs. This is the fractal square: four recursive calls, a center fill, and nothing else.

fractal_square.py#

import numpy as np
from PIL import Image

def draw_fractal_square(canvas, x_min, x_max, y_min, y_max, depth):
    # Divide the region into a 3x3 grid
    x_third = (x_max - x_min) // 3
    y_third = (y_max - y_min) // 3

    # Locate the center square within the grid
    center_x_start = x_min + x_third
    center_x_end = x_min + 2 * x_third
    center_y_start = y_min + y_third
    center_y_end = y_min + 2 * y_third

    # Fill the center square with green (+32 per recursion level)
    canvas[center_y_start:center_y_end, center_x_start:center_x_end, 1] += 32

    # Recurse into the four corner regions until depth reaches 0
    if depth > 0:
        draw_fractal_square(canvas, x_min, center_x_end, y_min, center_y_end, depth - 1)
        draw_fractal_square(canvas, center_x_start, x_max, y_min, center_y_end, depth - 1)
        draw_fractal_square(canvas, x_min, center_x_end, center_y_start, y_max, depth - 1)
        draw_fractal_square(canvas, center_x_start, x_max, center_y_start, y_max, depth - 1)

# Create an 800x800 black canvas (3 channels for RGB)
canvas = np.zeros((800, 800, 3), dtype=np.uint8)

# Generate fractal with depth=3 (produces 4 levels of detail)
draw_fractal_square(canvas, 0, 800, 0, 800, 3)

# Save the result as a PNG image
image = Image.fromarray(canvas)
image.save("quickstart_fractal.png")

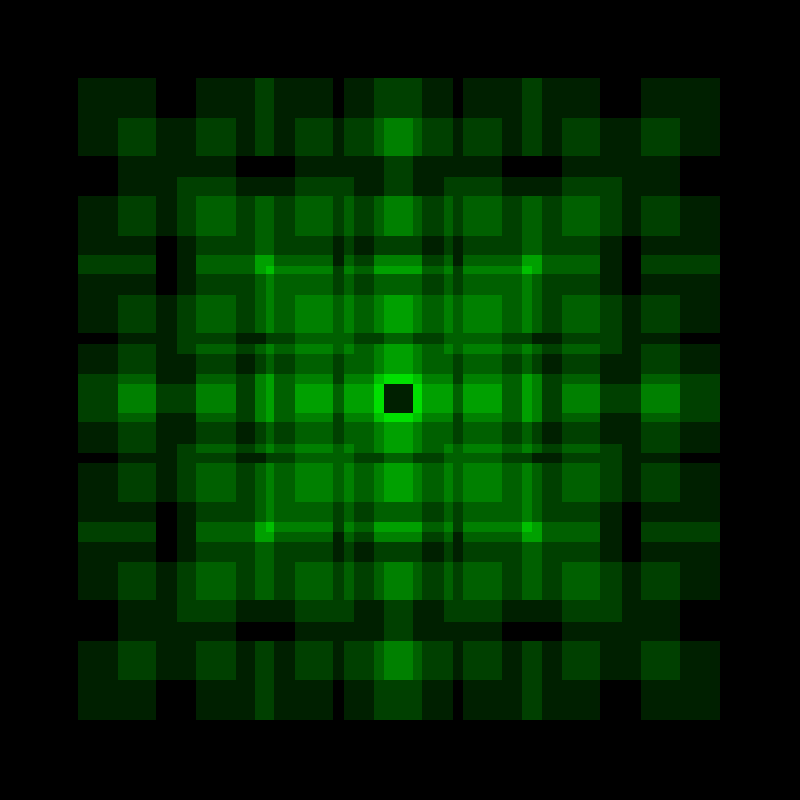

Fractal square pattern showing nested green squares with increasing brightness at intersections — Fractal square pattern generated with depth=3, producing 4 levels of detail.#

The pattern emerges by applying a simple rule repeatedly. Divide a region into nine parts, fill the center, then repeat the process on the four corners. Each iteration quadruples the square count, building the nested pattern visible in the output above.

Core Concepts#

Core Concept 1: What Are Fractals?#

A fractal is a geometric shape that exhibits self-similarity at different scales. When you zoom into a fractal, you see smaller copies of the same pattern repeating indefinitely [Mandelbrot1982]. This property makes fractals fundamentally different from ordinary geometric shapes like circles or triangles.

Fractals appear throughout nature in surprisingly diverse forms:

Fern leaves: Each leaflet resembles the whole fern
Coastlines: Bays contain smaller bays, which contain even smaller bays
Lightning bolts: Branches split into smaller branches
Snowflakes: Six-fold symmetry repeats at microscopic levels [Mandelbrot1982]

The mathematical study of fractals began with Benoit Mandelbrot’s groundbreaking work in 1975 [Mandelbrot1982]. He coined the term “fractal” from the Latin word fractus, meaning broken or fragmented. Fractals occupy a fractional dimension between traditional geometric dimensions. Michael Barnsley [Barnsley1988] later developed the Iterated Function System (IFS) approach for generating fractals. Peitgen and Richter [Peitgen1986] popularized fractal art through their visualizations.

Core Concept 2: Recursion Fundamentals#

Look at draw_fractal_square in the Quick Start code. It calls itself four times inside its own body. That is recursion: a function solving a problem by calling itself on a smaller piece of the same problem [Cormen2009]. Most recursive algorithms share two components:

Base Case: The condition that stops the recursion
Recursive Case: The part where the function calls itself with modified parameters

Consider our fractal square algorithm:

Anatomy of a recursive function#

def draw_fractal_square(canvas, x_min, x_max, y_min, y_max, depth):
    # Divide the region into a 3x3 grid
    x_third = (x_max - x_min) // 3
    y_third = (y_max - y_min) // 3

    # Locate the center square within the grid
    center_x_start = x_min + x_third
    center_x_end = x_min + 2 * x_third
    center_y_start = y_min + y_third
    center_y_end = y_min + 2 * y_third

    # Fill the center square with green (+32 per layer)
    canvas[center_y_start:center_y_end, center_x_start:center_x_end, 1] += 32

    # Base case: stop when depth reaches 0
    if depth > 0:
        # Recursive case: apply the same process to each corner
        draw_fractal_square(canvas, x_min, center_x_end, y_min, center_y_end, depth - 1)
        draw_fractal_square(canvas, center_x_start, x_max, y_min, center_y_end, depth - 1)
        draw_fractal_square(canvas, x_min, center_x_end, center_y_start, y_max, depth - 1)
        draw_fractal_square(canvas, center_x_start, x_max, center_y_start, y_max, depth - 1)

Line 12: Fill the center square (the action performed at each level)
Line 15: Base case check using the depth parameter
Lines 17-20: Four recursive calls, one for each corner region

The depth parameter acts as a countdown. Each recursive call decrements it by one, and when it reaches zero, the function stops calling itself. This prevents infinite recursion and allows you to control the level of detail in the final image.

Animation showing the recursive call tree growing from a single root call at depth 2, branching into four children at depth 1, each branching into four grandchildren at depth 0 where recursion stops — The recursion call tree for depth=2. Each node is one function call; the depth parameter counts down until the base case (depth=0) stops further branching. *Diagram generated with Claude - Opus 4.5*#

Core Concept 3: The Fractal Square Algorithm#

The fractal square algorithm follows a divide-and-conquer strategy [Cormen2009]. The diagram below shows the full spatial pattern: each region is divided into a 3x3 grid, the center cell is filled, and the process recurses on each corner.

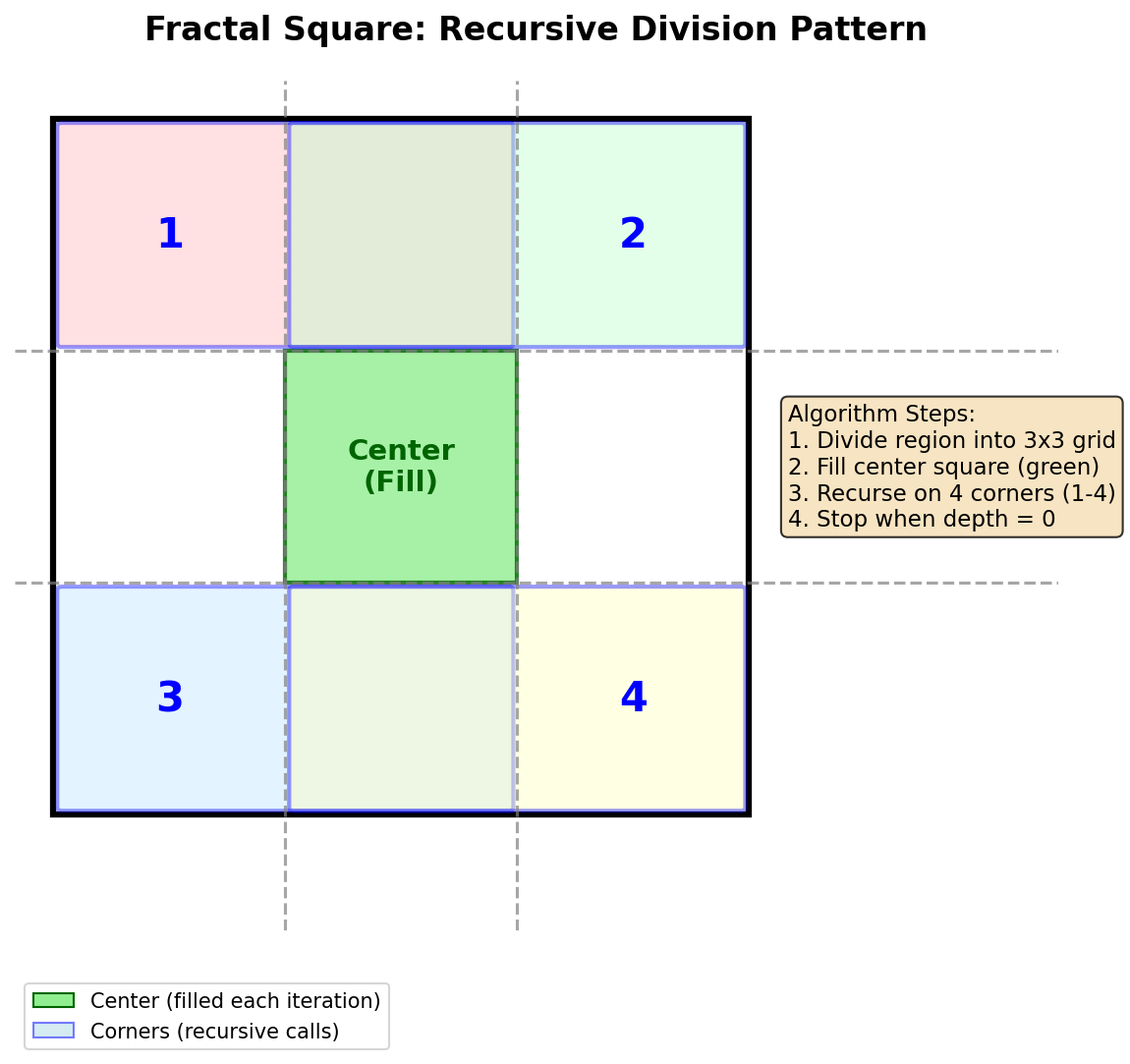

Diagram showing how the canvas is divided into a 3x3 grid with the center filled and corners recursively processed — Fractal square recursive division pattern. The canvas is divided into a 3x3 grid, the center is filled, and the process repeats on each corner. Diagram generated with Claude - Opus 4.5.#

The following three steps break this process down in detail.

Step 1: Divide the Region

The current region is divided into a 3x3 grid of nine equal rectangles. This is accomplished by calculating the boundaries at one-third and two-thirds of the width and height:

Grid division calculation#

# Calculate one-third of the region dimensions
x_third = (x_max - x_min) // 3
y_third = (y_max - y_min) // 3

# The center square starts at one-third and ends at two-thirds
center_x_start = x_min + x_third
center_x_end = x_min + 2 * x_third
center_y_start = y_min + y_third
center_y_end = y_min + 2 * y_third

Step 2: Fill the Center

The center rectangle is filled with color. We use the += operator instead of = to create an accumulation effect. Overlapping regions become brighter because color values stack.

Color accumulation for depth visualization#

# Add 32 to the green channel (index 1) of every pixel in the center
# Using += means overlapping regions get brighter with each layer
canvas[center_y_start:center_y_end, center_x_start:center_x_end, 1] += 32

The value 32 is added to the green channel (index 1) of each pixel in the center rectangle. Areas filled by multiple recursion levels accumulate more color, revealing the recursive structure visually. The final NumPy array is converted to an image using Pillow [PillowDocs].

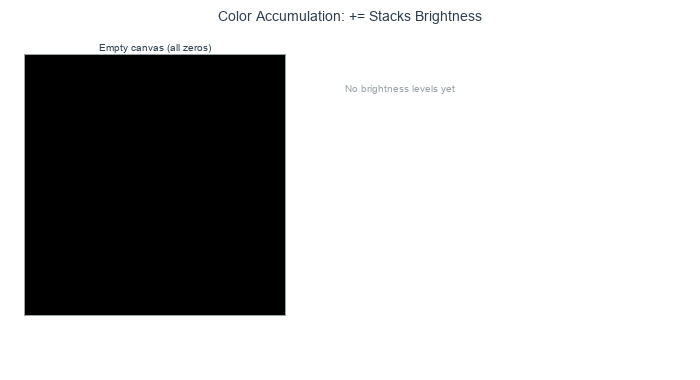

Animation showing how the green channel value increases at each recursion depth as overlapping regions accumulate brightness from 32 up to 224 — Color accumulation across four recursion levels. Each level adds 32 to the green channel; where regions overlap, brightness stacks up to 224 (seven overlaps). *Diagram generated with Claude - Opus 4.5*#

Step 3: Recurse on Corners

The algorithm then calls itself on each of the four corner regions. Because these regions overlap with the center, the nested square pattern emerges.

Top-left corner: from (x_min, y_min) to (center_x_end, center_y_end)
Top-right corner: from (center_x_start, y_min) to (x_max, center_y_end)
Bottom-left corner: from (x_min, center_y_start) to (center_x_end, y_max)
Bottom-right corner: from (center_x_start, center_y_start) to (x_max, y_max)

Animation showing the fractal square being built frame by frame, with each recursion level adding smaller nested squares — Step-by-step construction of the fractal across recursion levels.#

Important

The corner regions overlap with the center. This overlap is intentional and is what produces the nesting you see in the output. Each corner contains two-thirds of the parent region in each dimension, not just one-third.

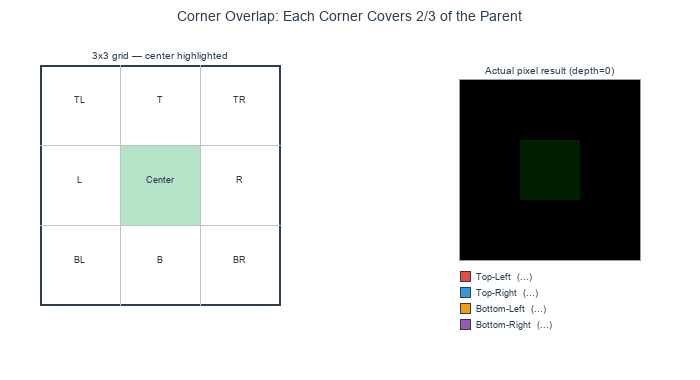

Animation showing each corner region appearing one at a time, revealing that each covers two-thirds of the parent and overlaps with the center and other corners — Each corner covers two-thirds of the parent region in both dimensions, creating up to five overlapping layers at the center cell. *Diagram generated with Claude - Opus 4.5*#

Hands-On Exercises#

Now it is time to apply what you’ve learned with three progressively challenging exercises. Each builds on the previous one using the Execute → Modify → Create approach [Sweller1985], [Mayer2020].

Exercise 1: Execute and Explore#

Run the script exercise1_execute.py and observe the output:

python exercise1_execute.py

After running the code, answer these reflection questions:

How many distinct brightness levels can you count in the image?
Why do some areas appear brighter than others?
What would happen if you changed the depth from 3 to 0? What about 5?

Exercise 2: Modify Parameters#

Open exercise2_modify.py and change the CONFIG values at the top of the script. Re-run the script after each change to see how the fractal responds.

exercise2_modify.py: CONFIG section#

# =============================================
# CONFIGURATION: Modify these values
# =============================================
RECURSION_DEPTH = 3     # How many levels of detail (try 0, 1, 2, 3, 4, 5)
COLOR_CHANNEL = 1       # Which RGB channel: 0=Red, 1=Green, 2=Blue
COLOR_INCREMENT = 32    # Brightness added per level (try 16, 32, 64)
CANVAS_SIZE = 800       # Image dimensions in pixels
# =============================================

Goal 1: Change RECURSION_DEPTH to explore detail levels

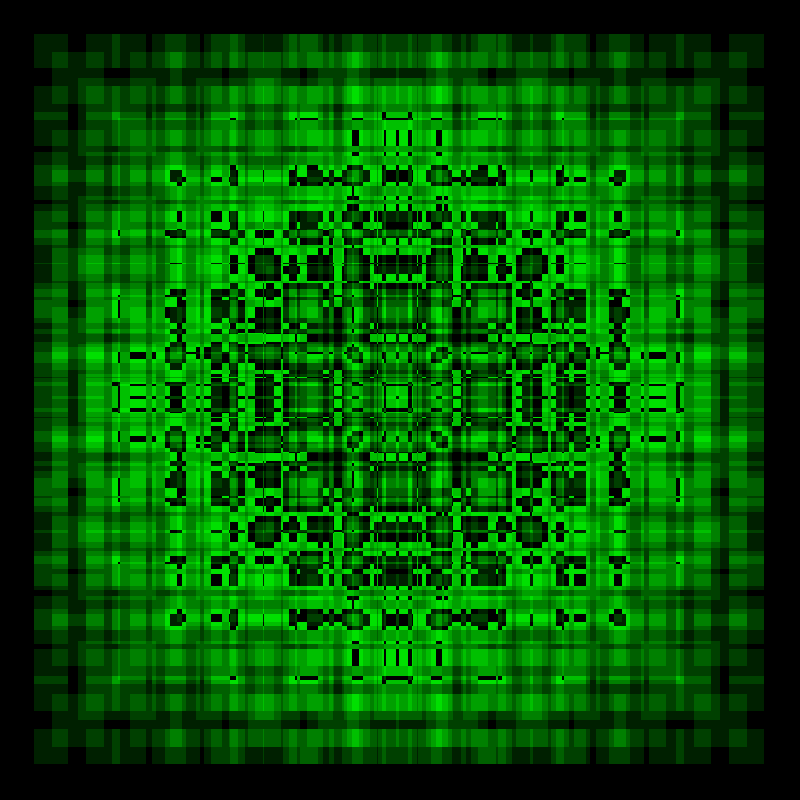

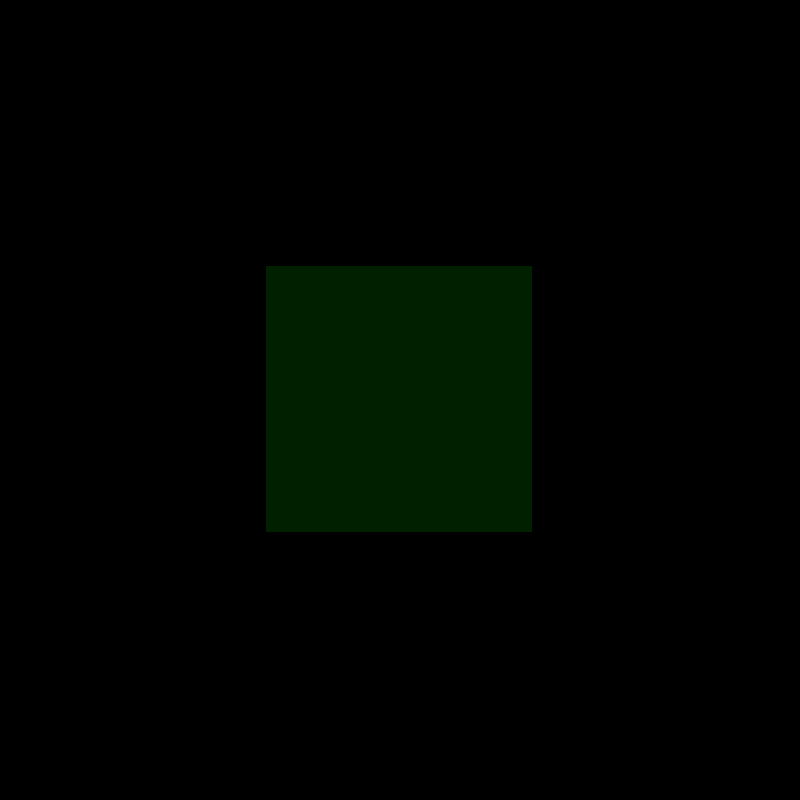

Set RECURSION_DEPTH to 0, then 1, then 5. Run the script each time.

Goal 2: Change COLOR_CHANNEL to make a red or blue fractal

Set COLOR_CHANNEL to 0 (red) or 2 (blue) and re-run.

Goal 3: Change COLOR_INCREMENT to adjust contrast

Try COLOR_INCREMENT = 16 for a subtle, dark pattern, and COLOR_INCREMENT = 64 for bright, high-contrast output.

Exercise 3: Create Your Own Fractal#

Open exercise3_create.py and complete the four TODOs to make the fractal work. The center-fill step is done for you. Your task is to add the four recursive calls that process each corner.

What you need to know: Each corner covers two-thirds of the parent region in both dimensions. The corners overlap with the center square, which is what creates the nested pattern.

python exercise3_create.py

Without the TODOs filled in, you will only see a single center square. Once your recursive calls are correct, the full fractal pattern will appear.

Make It Your Own#

Once your fractal works, try the experiments listed at the bottom of exercise3_create.py:

Change RECURSION_DEPTH to 5 for dense detail
Set COLOR_CHANNEL to 0 for a red fractal
Comment out two of your corner calls and see what asymmetric pattern appears?

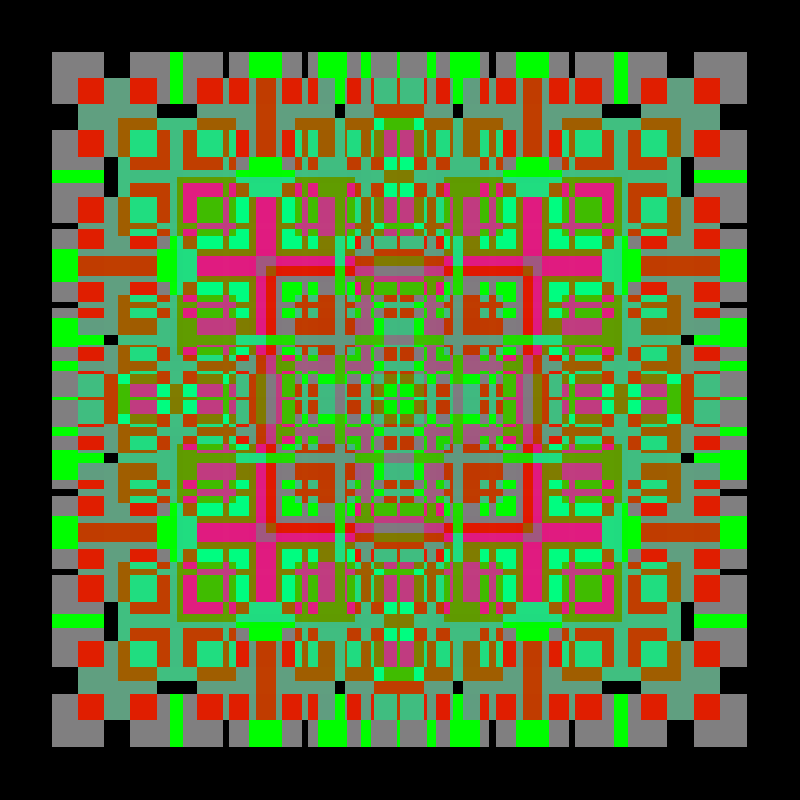

Challenge Extension: Modify the color based on the recursion depth. Use the depth value to create a gradient effect where deeper recursion levels have different colors.

Note

Implementation Note

The fractal square implementations in this module are inspired by classical fractal geometry references:

Mandelbrot, B.B. (1982). The Fractal Geometry of Nature, W.H. Freeman. Covers self-similar fractals and fractional dimensions
Barnsley, M.F. (1988). Fractals Everywhere, Academic Press. Covers Iterated Function Systems for fractal generation
Peitgen, H.-O. & Richter, P.H. (1986). The Beauty of Fractals, Springer-Verlag. Covers visual fractal construction techniques
Peitgen, H.-O., Jurgens, H. & Saupe, D. (1992). Fractals for the Classroom, Springer/NCTM. Covers educational fractal exercises [Peitgen1992]

Summary#

This exercise showed that 15 lines of recursive logic can fill an 800x800 canvas with a fractal pattern. Here is what to remember:

A function that calls itself on smaller inputs is recursive. The depth parameter stops it from running forever.
The fractal square divides each region into a 3x3 grid, fills the center, and recurses on the four corners. Those corners overlap, which is why the output shows a nested structure.
Using += instead of = makes overlapping regions brighter, so the recursive layering becomes visible in the image.
Forgetting the base case, exceeding 255 in a color channel, or sizing corners at 1/3 instead of 2/3 are the three mistakes most likely to break your output.
